CAP ALUM 4700UF 20% 10V RADIAL

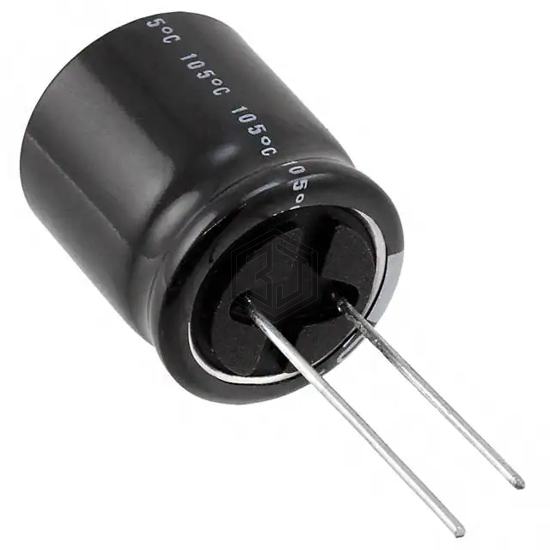

URZ1A472MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4700UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 4,992
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.288 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM1A472MHD6TN | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 100% | View |
| UKT1A472MHD | Nichicon | CAP ALUM 4700UF 20% 10V RADIAL | 93% | View |
| UVY0J472MHD1TO | Nichicon | CAP ALUM 4700UF 20% 6.3V RADIAL | 85% | View |
| B41858C3478M9 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 10V RADIAL | 80% | View |
| MAL213655472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 65% | View |
| MAL225035472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 16V RADIAL | 50% | View |
