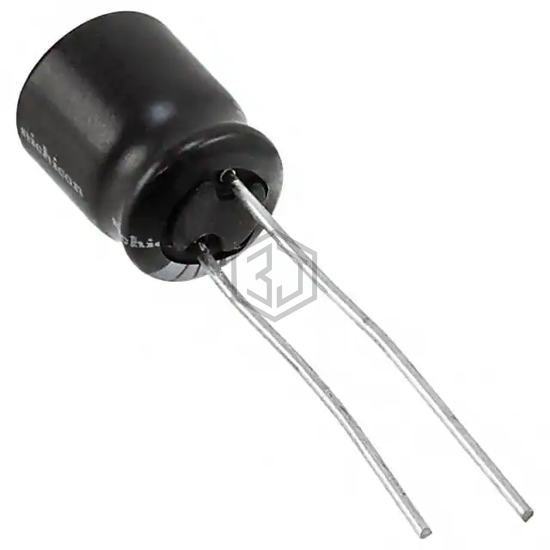

CAP ALUM 330UF 20% 10V RADIAL
URZ1A331MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 9,122
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 210 mA @ 120 Hz |
| Ripple Current @ High Frequency | 315 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URZ1A331MPD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212314331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 10V AXIAL | 100% | View |
| UBX1A331MPD1TD | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 91% | View |
| UPM1A331MPD1TA | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 83% | View |
| UVZ0J331MEH | Nichicon | CAP ALUM 330UF 20% 6.3V RADIAL | 82% | View |
| URZ1V331MPD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 56% | View |
| 678D337M063EN4D | Vishay Sprague | CAP ALUM 330UF 20% 63V RADIAL | 56% | View |
