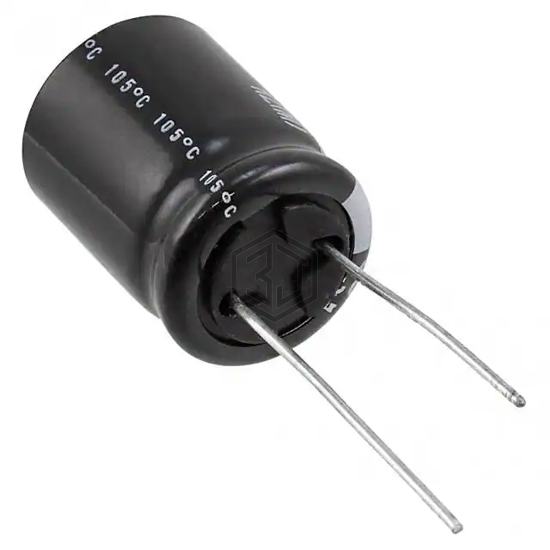

CAP ALUM 6800UF 20% 6.3V RADIAL
URZ0J682MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 7,367
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.38 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKRG100ELL682MM20S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 83% | View |
| URZ1A682MHD | Nichicon | CAP ALUM 6800UF 20% 10V RADIAL | 81% | View |
| EKMG100ELL682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 10V RADIAL | 75% | View |
| 16PX6800MEFCGC16X25 | Rubycon | CAP ALUM 6800UF 20% 16V RADIAL | 57% | View |
| 35PX6800MEFC18X35.5 | Rubycon | CAP ALUM 6800UF 20% 35V RADIAL | 56% | View |
| EKMG250EC3682MMP1S | United Chemi-Con | CAP ALUM 6800UF 20% 25V RADIAL | 55% | View |
