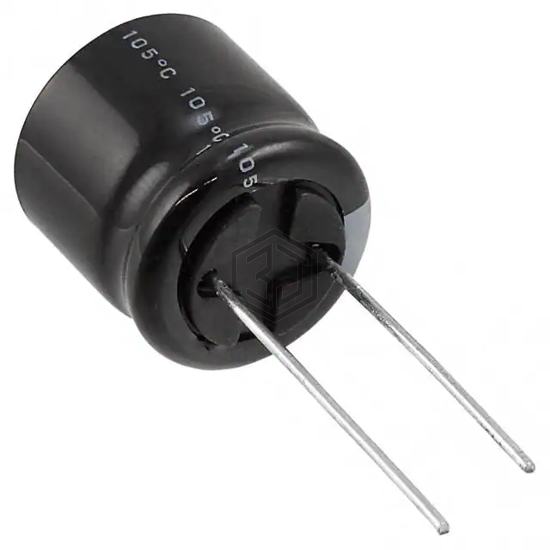

CAP ALUM 3300UF 20% 6.3V RADIAL
URZ0J332MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,969
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 860 mA @ 120 Hz |
| Ripple Current @ High Frequency | 989 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ100ELL332MK20S | United Chemi-Con | CAP ALUM 3300UF 20% 10V RADIAL | 80% | View |
| ECA-1AHG332B | Panasonic Electronic Components | CAP ALUM 3300UF 20% 10V RADIAL | 79% | View |
| MAL211845332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V T/H | 58% | View |
| MAL215035332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 56% | View |
| 301R332U050GT2 | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 50V RADIAL | 56% | View |
| 50PX3300MEFC18X31.5 | Rubycon | CAP ALUM 3300UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for URZ0J332MHD1TN and get a quote within 24 hours.
