CAP ALUM 10000UF 20% 6.3V RADIAL

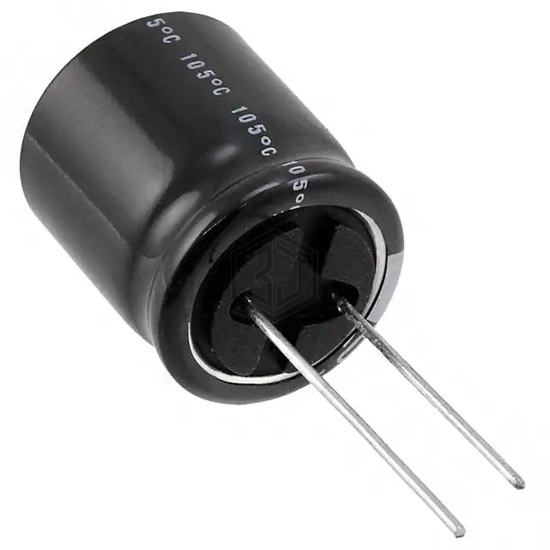

URZ0J103MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 6,726
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6675 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 109RZM6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10000UF 20% 6.3V RADIAL | 100% | View |
| UPA0J103MHD | Nichicon | CAP ALUM 10000UF 20% 6.3V RADIAL | 76% | View |
| EEU-HD1C103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 16V RADIAL | 62% | View |
| 16WXA10000MEFCGC18X25 | Rubycon | CAP ALUM 10000UF 20% 16V RADIAL | 56% | View |
| THAS103M016AC1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 16V FLATPCK | 52% | View |
| B41896C3109M | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 10V RADIAL | 51% | View |
Submit your RFQ for URZ0J103MHD and get a quote within 24 hours.
