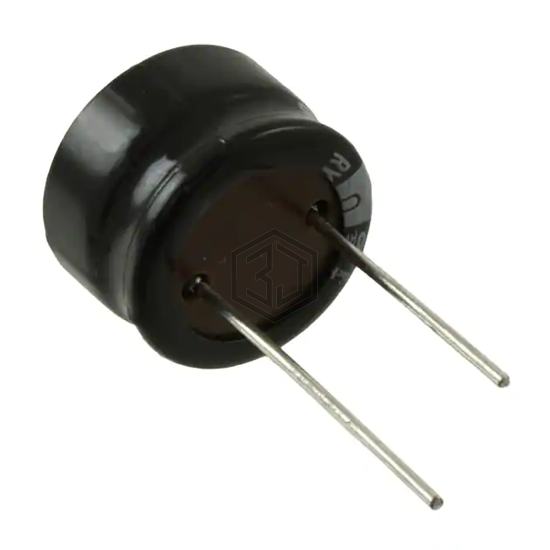

CAP ALUM 6.8UF 20% 450V RADIAL
URY2W6R8MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6.8UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 9,294
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 38 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URY2W6R8MHD is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43041A5685M | EPCOS - TDK Electronics | CAP ALUM 6.8UF 20% 450V RADIAL | 98% | View |
| MALREKB00DE168P00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6.8UF 20% 450V RADIAL | 87% | View |
| ULD1H6R8MDD1TA | Nichicon | CAP ALUM 6.8UF 20% 50V RADIAL | 69% | View |
| UPJ1K6R8MDD1TA | Nichicon | CAP ALUM 6.8UF 20% 80V RADIAL | 68% | View |
| RXW6R8M1JBK-0511S | Surge | CAP ALUM 63V POLAR | 67% | View |
| UMF1E6R8MDD1TP | Nichicon | CAP ALUM 6.8UF 20% 25V RADIAL | 64% | View |
