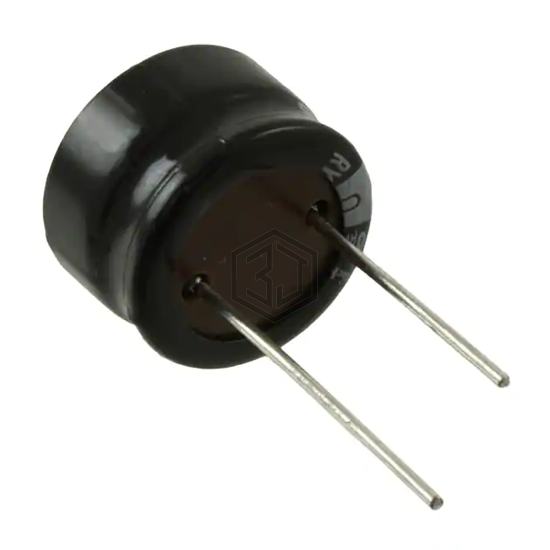

CAP ALUM 10UF 20% 400V RADIAL
URY2G100MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 2,967
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 104 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URY2G100MHD1TN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100YXF10MEFCTA6.3X11 | Rubycon | CAP ALUM 10UF 20% 100V RADIAL | 88% | View |
| 250WXA10MEFC10X9 | Rubycon | CAP ALUM 10UF 20% 250V RADIAL | 70% | View |
| 50YXM10MEFRTA5X11 | Rubycon | CAP ALUM 10UF 20% 50V RADIAL | 63% | View |
| 63YXF10MEFCTA5X11 | Rubycon | CAP ALUM 10UF 20% 63V RADIAL | 61% | View |
| 25ZLG10MEFC4X7 | Rubycon | CAP ALUM 10UF 20% 25V RADIAL | 57% | View |
| 30D106G050CB2A | Vishay Sprague | CAP ALUM 10UF 50V AXIAL | 56% | View |
Submit your RFQ for URY2G100MHD1TN and get a quote within 24 hours.
