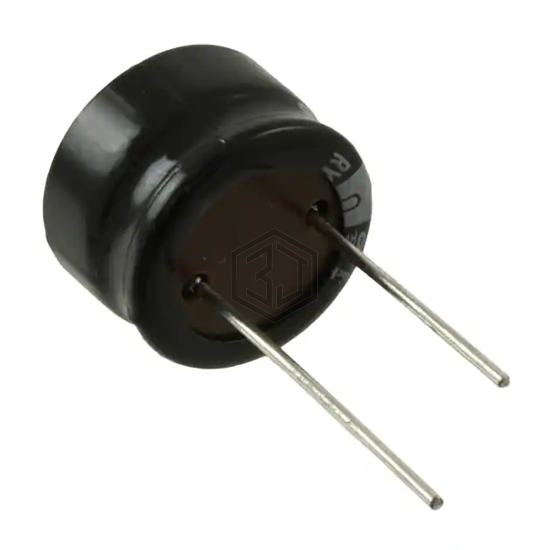

CAP ALUM 680UF 20% 35V RADIAL
URY1V681MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,253
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 610 mA @ 120 Hz |
| Ripple Current @ High Frequency | 915 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URY1V681MHD1TN is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25PX680MEFC10X12.5 | Rubycon | CAP ALUM 680UF 20% 25V RADIAL | 84% | View |
| EEU-FK1C681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 16V RADIAL TH | 76% | View |
| 860160375029 | Würth Elektronik | CAP ALUM 680UF 20% 16V RADIAL | 76% | View |
| EEU-FC1A681 | Panasonic Electronic Components | CAP ALUM 680UF 20% 10V RADIAL | 73% | View |
| 678D687M063FV3D | Vishay Sprague | CAP ALUM 680UF 20% 63V RADIAL | 62% | View |
| 860080375017 | Würth Elektronik | CAP ALUM 680UF 20% 16V RADIAL | 61% | View |
