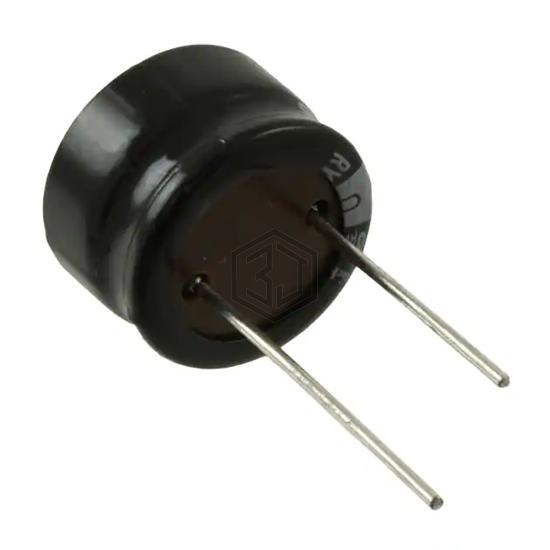

CAP ALUM 330UF 20% 50V RADIAL
URY1H331MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,201
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URY1H331MHD1TO is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY500ETD331MK20S | United Chemi-Con | CAP ALUM 330UF 20% 50V RADIAL | 91% | View |
| MAL211818331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V AXIAL | 85% | View |
| MAL215038331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 63V RADIAL | 81% | View |
| UBW1J331MHD1TO | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 79% | View |
| 678D337M040DM3J | Vishay Sprague | CAP ALUM 330UF 20% 40V RADIAL | 79% | View |
| UBW1A331MPD1TD | Nichicon | CAP ALUM 330UF 20% 10V RADIAL | 59% | View |
