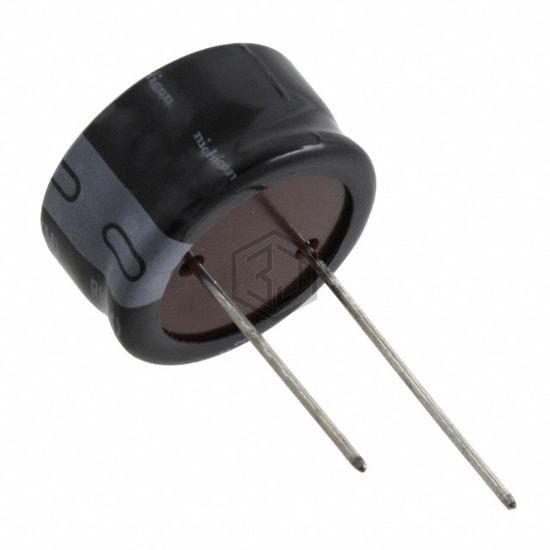

CAP ALUM 47UF 20% 350V RADIAL
URU2V470MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 6,452
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 448 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU2V470MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG351ELL470ML25S | United Chemi-Con | CAP ALUM 47UF 20% 350V RADIAL | 93% | View |
| MAL205787479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 450V SNAP | 87% | View |
| 250TXW47MEFR10X25 | Rubycon | CAP ALUM 47UF 20% 250V RADIAL TH | 80% | View |
| EEU-TA1J470B | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V RADIAL | 77% | View |
| 350BXW47MEFR10X35 | Rubycon | CAP ALUM 47UF 20% 350V RADIAL | 67% | View |
| 672D476H200FV3D | Vishay Sprague | CAP ALUM 47UF 200V RADIAL | 64% | View |
Submit your RFQ for URU2V470MRD and get a quote within 24 hours.
