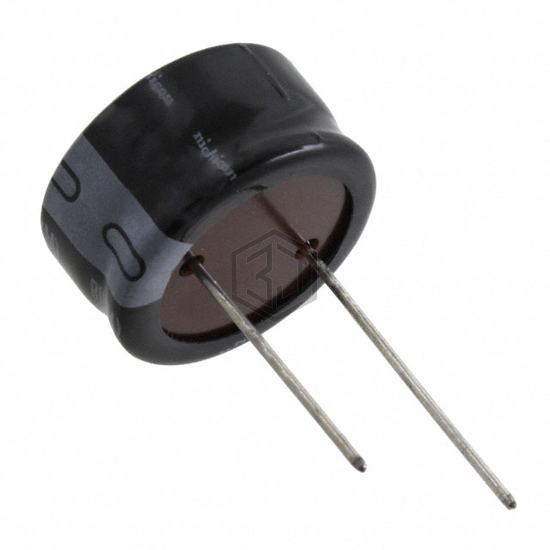

CAP ALUM 33UF 20% 400V RADIAL
URU2G330MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 9,451
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 448 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU2G330MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ421ELL330ML20S | United Chemi-Con | CAP ALUM 33UF 20% 420V RADIAL | 73% | View |
| UCY2V330MHD3TN | Nichicon | CAP ALUM 33UF 20% 350V RADIAL | 68% | View |
| RXJ330M2ABK-1012S | Surge | CAP ALUM 100V POLAR | 68% | View |
| RXQ330M2DBK-1020S | Surge | CAP ALUM 200V POLAR | 68% | View |
| UCS2C330MPD | Nichicon | CAP ALUM 33UF 20% 160V RADIAL | 66% | View |
| UBT2E330MHD1TO | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 65% | View |
