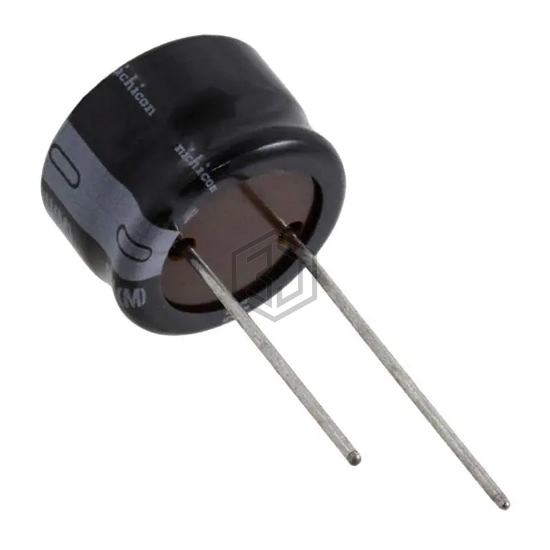

CAP ALUM 33UF 20% 315V RADIAL
URU2F330MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 2,671
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 230 mA @ 120 Hz |
| Ripple Current @ High Frequency | 368 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU2F330MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVR2D330MHD1TO | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 86% | View |
| 350TXW33MEFC10X25 | Rubycon | CAP ALUM 33UF 20% 350V RADIAL | 84% | View |
| UPM2A330MPD1TA | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 75% | View |
| ESY336M100AG7AA | KEMET | CAP ALUM 33UF 20% 100V RADIAL TH | 75% | View |
| RXW330M2ABK-0815S | Surge | CAP ALUM 100V POLAR | 68% | View |
| B41821F9336M000 | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 100V RADIAL | 63% | View |
Submit your RFQ for URU2F330MRD and get a quote within 24 hours.
