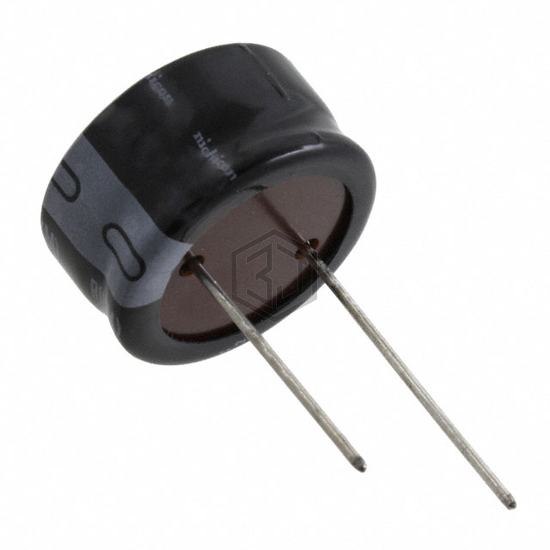

CAP ALUM 68UF 20% 250V RADIAL
URU2E680MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 8,504
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 330 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU2E680MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXJ251ELL680MJ35S | United Chemi-Con | CAP ALUM 68UF 20% 250V RADIAL | 91% | View |
| URS2D680MHD1TN | Nichicon | CAP ALUM 68UF 20% 200V RADIAL | 78% | View |
| UBX1K680MPL1TD | Nichicon | CAP ALUM 68UF 20% 80V RADIAL | 70% | View |
| EPAG401ELL680MK40S | United Chemi-Con | CAP ALUM 68UF 20% 400V RADIAL | 68% | View |
| 400CXW68MEFR12.5X40 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 65% | View |
| 420CXW68MEFR12.5X40 | Rubycon | CAP ALUM 68UF 20% 420V RADIAL | 64% | View |
Submit your RFQ for URU2E680MRD and get a quote within 24 hours.
