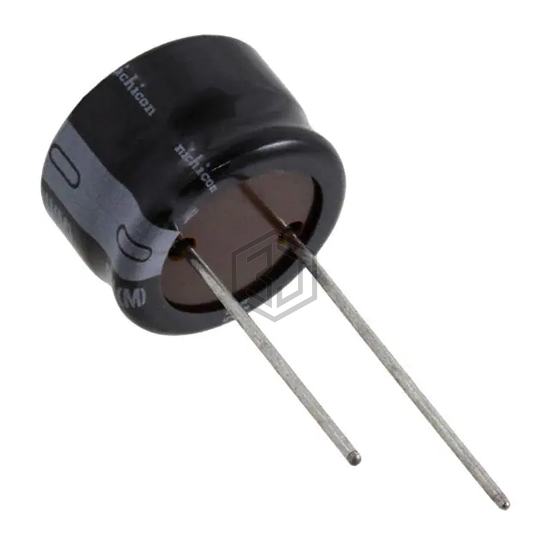

CAP ALUM 680UF 20% 50V RADIAL
URU1H681MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 5,795
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 750 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.125 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU1H681MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LKG1H681MESZCK | Nichicon | CAP ALUM 680UF 20% 50V SNAP | 91% | View |
| MAL214858681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 90% | View |
| MAL214668681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 80% | View |
| 35WXA680MEFCG412.5X16 | Rubycon | CAP ALUM 680UF 20% 35V RADIAL | 76% | View |
| ELXY160ETD681MJ20S | United Chemi-Con | CAP ALUM 680UF 20% 16V RADIAL | 73% | View |
| 35YXH680MEFCG412.5X20 | Rubycon | CAP ALUM 680UF 20% 35V RADIAL | 69% | View |
Submit your RFQ for URU1H681MRD and get a quote within 24 hours.
