CAP ALUM 3300UF 20% 16V RADIAL

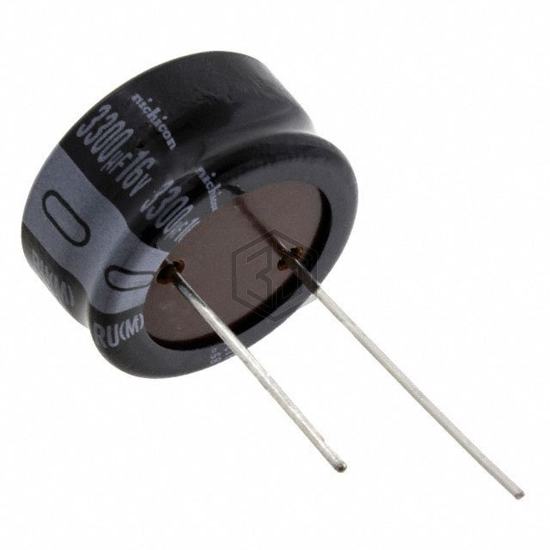

URU1C332MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,140
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.41 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.6215 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU1C332MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK332M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 3300UF 20% 16V RADIAL | 100% | View |
| UVR1A332MHA | Nichicon | CAP ALUM 3300UF 20% 10V RADIAL | 84% | View |
| ELXY100ELL332ML20S | United Chemi-Con | CAP ALUM 3300UF 20% 10V RADIAL | 82% | View |
| EEU-HD1V332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 35V RADIAL | 73% | View |
| EEU-FM0J332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 6.3V RADIAL | 58% | View |
| B41821A6338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 50V RADIAL | 53% | View |
