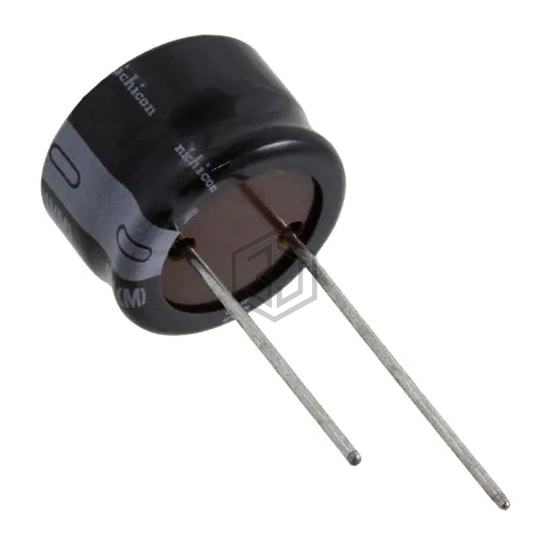

CAP ALUM 3300UF 20% 6.3V RADIAL
URU0J332MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,807
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 920 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URU0J332MHD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211844332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V T/H | 72% | View |
| MAL211814332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 10V AXIAL | 70% | View |
| ECE-A1CN332U | Panasonic Electronic Components | CAP ALUM 3300UF 20% 16V RADIAL | 64% | View |
| 338CKE010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 10V RADIAL | 62% | View |
| MAL216065332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V RADIAL | 56% | View |
| EEU-FR0J332LB | Panasonic Electronic Components | CAP ALUM 3300UF 20% 6.3V RAD TH | 55% | View |
