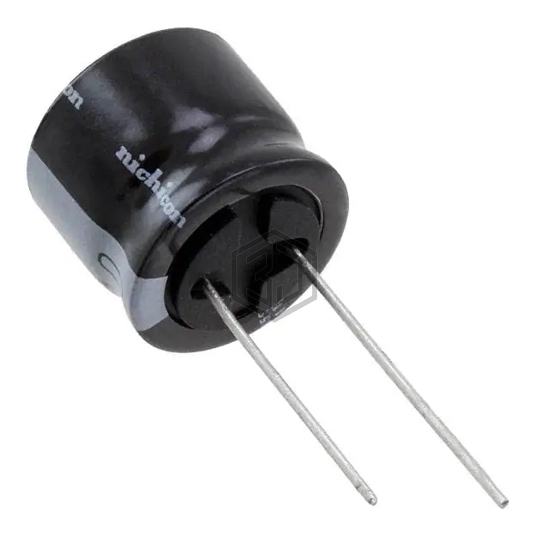

CAP ALUM 68UF 20% 200V RADIAL
URS2D680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 2,948
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 784 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL204343689E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68UF 250V AXIAL | 89% | View |
| UAQ2G680MHD6 | Nichicon | CAP ALUM 68UF 20% 400V RADIAL | 63% | View |
| B43305A9686M62 | EPCOS - TDK Electronics | CAP ALUM 68UF 20% 400V SNAP | 62% | View |
| 672D686H100EK5C | Vishay Sprague | CAP ALUM 68UF 100V RADIAL | 56% | View |
| VHT68M10 | NTE Electronics, Inc | CAP ALUM 68UF 20% 10V RADIAL | 56% | View |
| 100ZL68MEFC10X16 | Rubycon | CAP ALUM 68UF 20% 100V RADIAL | 54% | View |
