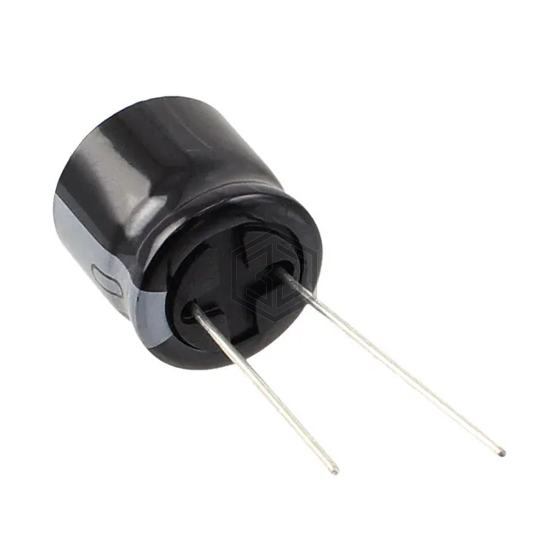

CAP ALUM 47UF 20% 200V RADIAL
URS2D470MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 5,097
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 420 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG201ELL470MK20S | United Chemi-Con | CAP ALUM 47UF 20% 200V RADIAL | 75% | View |
| EEU-FS2A470B | Panasonic Electronic Components | CAP ALUM 47UF 20% 100V RADIAL | 71% | View |
| EEU-FS2A470LB | Panasonic Electronic Components | CAP ALUM 47UF 20% 100V RADIAL | 71% | View |
| UBT2C470MHD1TO | Nichicon | CAP ALUM 47UF 20% 160V RADIAL | 65% | View |
| UBW1J470MPD1TD | Nichicon | CAP ALUM 47UF 20% 63V RADIAL | 56% | View |
| RXW470M1CBK-0511S | SURGE | CAP ALUM 47UF 20% 16V RADIAL | 56% | View |
