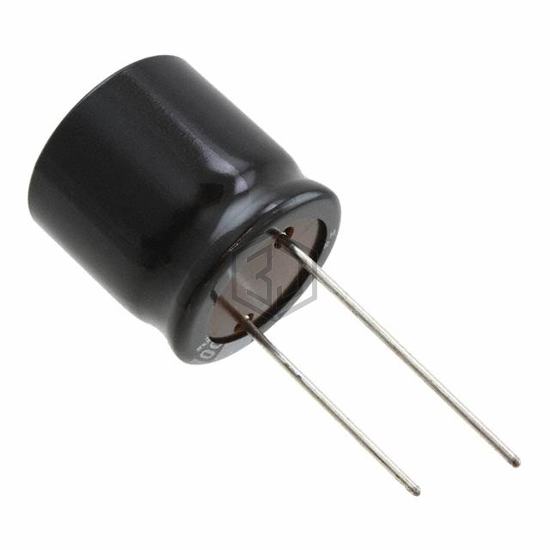

CAP ALUM 100UF 20% 200V RADIAL
URS2D101MRD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 9,379
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 590 mA @ 120 Hz |
| Ripple Current @ High Frequency | 944 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URZ2C101MRD6 | Nichicon | CAP ALUM 100UF 20% 160V RADIAL | 80% | View |
| EKWA421ELL101MU40S | United Chemi-Con | RADIAL ALUMINUM ELECTROLYTIC CAP | 72% | View |
| MAL205358101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 385V RADIAL | 70% | View |
| EEU-FC2A101 | Panasonic Electronic Components | CAP ALUM 100UF 20% 100V RADIAL | 64% | View |
| MAL225777101E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 450V SNAP | 62% | View |
| 107LBB400M2CC | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 400V SNAP | 60% | View |
