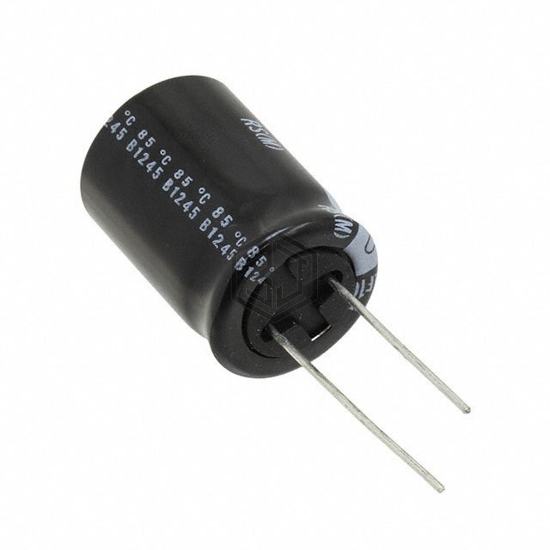

CAP ALUM 150UF 20% 160V RADIAL
URS2C151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 9,785
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 710 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.136 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGJ2E151MELA15 | Nichicon | CAP ALUM 150UF 20% 250V SNAP | 84% | View |
| EKXG201ELL151MM25S | United Chemi-Con | CAP ALUM 150UF 20% 200V RADIAL | 77% | View |
| UCY2D151MHD3 | Nichicon | CAP ALUM 150UF 20% 200V RADIAL | 74% | View |
| B43501C2157M67 | EPCOS - TDK Electronics | CAP ALUM 150UF 20% 250V SNAP | 74% | View |
| UCY2D151MHD | Nichicon | CAP ALUM 150UF 20% 200V RADIAL | 73% | View |
| 420TXW150MEFR18X40 | Rubycon | CAP ALUM 150UF 20% 420V RADIAL | 69% | View |
Submit your RFQ for URS2C151MHD and get a quote within 24 hours.
