CAP ALUM 100UF 20% 100V RADIAL

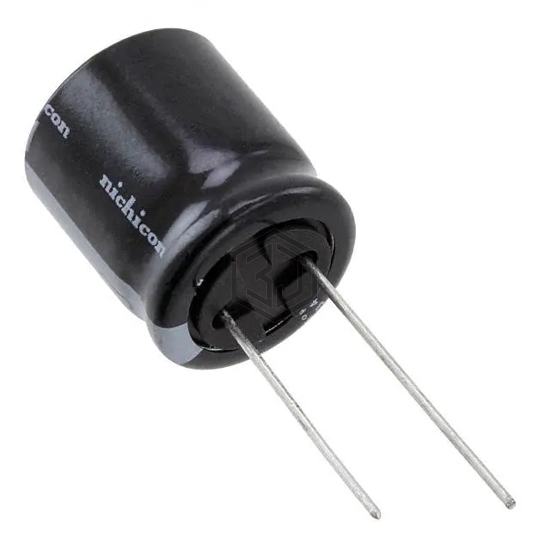

URS2A101MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,074
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 370 mA @ 120 Hz |
| Ripple Current @ High Frequency | 555 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41856C8476M000 | EPCOS - TDK Electronics | CAP ALUM 63V POLAR | 78% | View |
| UPJ1H101MPD6TD | Nichicon | CAP ALUM 100UF 20% 50V RADIAL | 77% | View |
| UVZ2D101MHD | Nichicon | CAP ALUM 100UF 20% 200V RADIAL | 77% | View |
| 35ZLJ100MT16.3X11 | Rubycon | CAP ALUM 100UF 20% 35V RADIAL | 72% | View |
| 50ZLH100MEFCM18X11.5 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 71% | View |
| UPW1V101MPD | Nichicon | CAP ALUM 100UF 20% 35V RADIAL | 71% | View |
Submit your RFQ for URS2A101MHD and get a quote within 24 hours.
