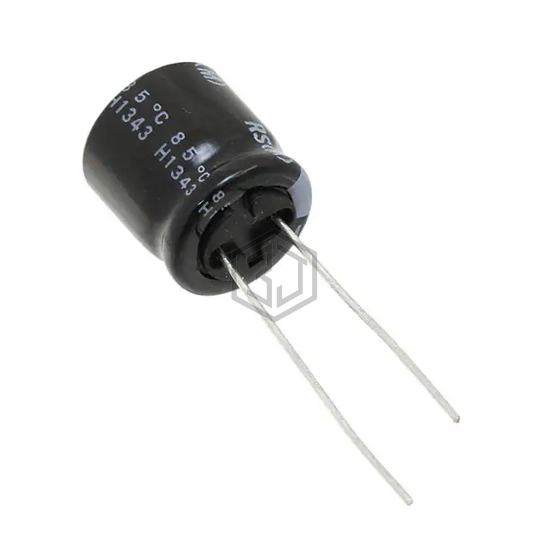

CAP ALUM 470UF 20% 35V RADIAL
URS1V471MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 590 mA @ 120 Hz |
| Ripple Current @ High Frequency | 885 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214656471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 25V RADIAL | 79% | View |
| 160PX470MEFCGC18X40 | Rubycon | CAP ALUM 470UF 20% 160V RADIAL | 67% | View |
| 50YXG470MEFCG412.5X20 | Rubycon | CAP ALUM 470UF 20% 50V RADIAL | 64% | View |
| B41821A4477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 16V RADIAL | 62% | View |
| MAL213218471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 63V AXIAL | 60% | View |
| MAL215084471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 10V RADIAL | 55% | View |
Submit your RFQ for URS1V471MHD1TO and get a quote within 24 hours.
