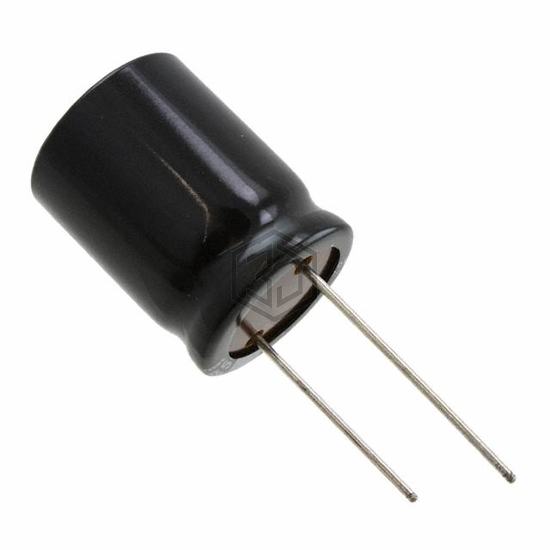

CAP ALUM 3300UF 20% 35V RADIAL
URS1V332MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,204
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 338CKE035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 35V RADIAL | 95% | View |
| MAL213817332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V AXIAL | 91% | View |
| ELXZ350EC3332MM35S | United Chemi-Con | CAP ALUM 3300UF 20% 35V RADIAL | 81% | View |
| 338TMA050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 50V AXIAL | 80% | View |
| UBT1A332MHD1TN | Nichicon | CAP ALUM 3300UF 20% 10V RADIAL | 73% | View |
| LKS1J332MESY | Nichicon | CAP ALUM 3300UF 20% 63V SNAP | 69% | View |
Submit your RFQ for URS1V332MRD and get a quote within 24 hours.
