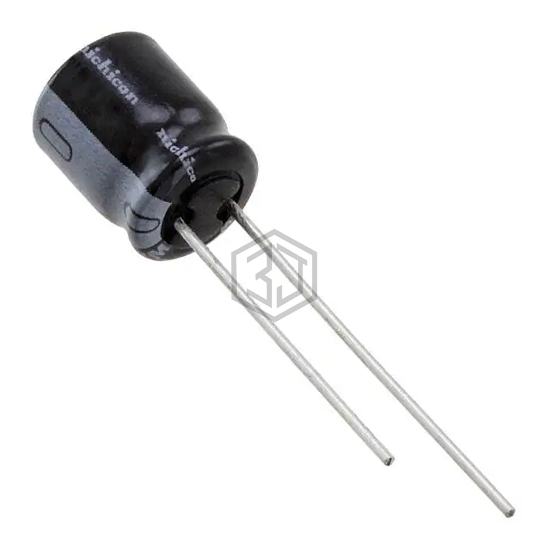

CAP ALUM 47UF 20% 63V RADIAL
URS1J470MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,816
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 170 mA @ 120 Hz |
| Ripple Current @ High Frequency | 340 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URS1J470MPD1TD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 63YXG47MEFC8X11.5 | Rubycon | CAP ALUM 47UF 20% 63V RADIAL TH | 100% | View |
| ELE-630ELL470MHB5D | United Chemi-Con | CAP ALUM 47UF 20% 63V RADIAL | 91% | View |
| MAL203127479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 40V AXIAL | 77% | View |
| UAS2G470MHD6 | Nichicon | CAP ALUM 47UF 20% 400V RADIAL | 60% | View |
| 25ML47M6.3X7 | Rubycon | CAP ALUM 47UF 20% 25V RADIAL | 56% | View |
| 672D476H200FV5R | Vishay Sprague | CAP ALUM 47UF 200V RADIAL | 56% | View |
Submit your RFQ for URS1J470MPD1TD and get a quote within 24 hours.
