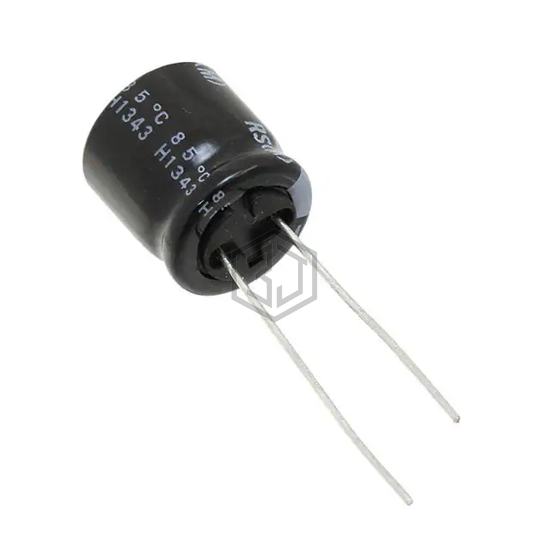

CAP ALUM 220UF 20% 63V RADIAL
URS1J221MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 7,798
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 735 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALIEYN07AB322X02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% SNAP | 100% | View |
| MALIEYN07CU322X02K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% SNAP | 100% | View |
| MAL214869221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 100V RADIAL | 77% | View |
| ESC227M035AH1EA | KEMET | CAP ALUM 220UF 20% 35V RADIAL | 77% | View |
| B41888C7227M | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 35V RADIAL | 69% | View |
| LP221M200E1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 200V SNAP | 67% | View |
