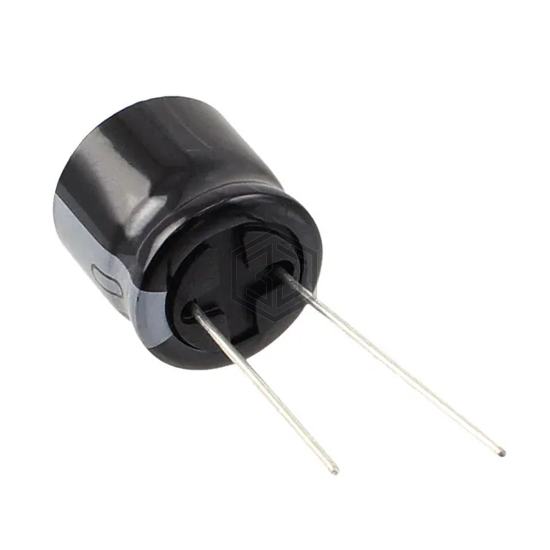

CAP ALUM 2200UF 20% 16V RADIAL
URS1C222MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 5,404
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.16 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.334 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16YXF2200MEFC12.5X25 | Rubycon | CAP ALUM 2200UF 20% 16V RADIAL | 92% | View |
| 228CKH016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 16V RADIAL | 92% | View |
| EEU-TA1A222SB | Panasonic Electronic Components | CAP ALUM 2200UF 20% 10V RADIAL | 73% | View |
| MAL213246222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 25V SNAP | 66% | View |
| ECA-1HM222B | Panasonic Electronic Components | CAP ALUM 2200UF 20% 50V RADIAL | 64% | View |
| 50PX2200MEFCGC16X31.5 | Rubycon | CAP ALUM 2200UF 20% 50V RADIAL | 64% | View |
Submit your RFQ for URS1C222MHD1TN and get a quote within 24 hours.
