CAP ALUM 6800UF 20% 10V RADIAL

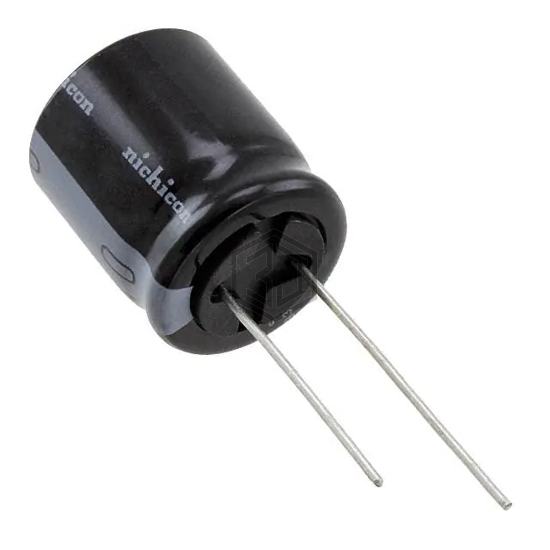

URS1A682MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,186
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.85 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1275 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
Submit your RFQ for URS1A682MHD1TN and get a quote within 24 hours.
