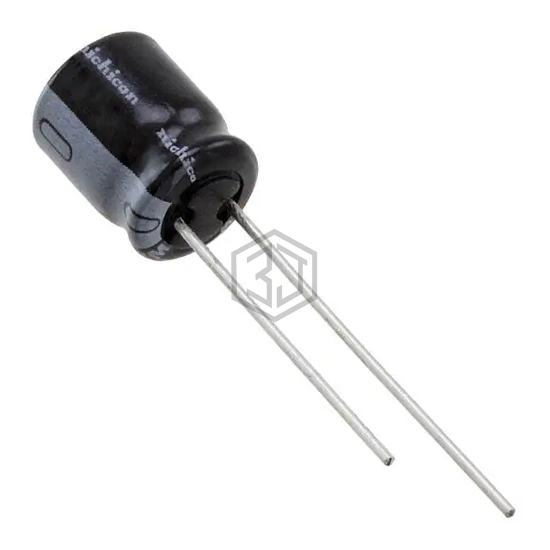

CAP ALUM 470UF 20% 10V RADIAL
URS1A471MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 7,132
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
URS1A471MPD1TA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213214471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 10V AXIAL | 99% | View |
| ED1A471MP26311EU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 96% | View |
| RJA471M1CBK-0811S | SURGE | CAP ALUM 470UF 20% 16V RADIAL | 76% | View |
| EEU-EB1H471B | Panasonic Electronic Components | CAP ALUM 470UF 20% 50V RADIAL | 71% | View |
| 16YXG470MEFCT78X11.5 | Rubycon | CAP ALUM 470UF 20% 16V RADIAL | 70% | View |
| UES0J471MPM1TO | Nichicon | CAP ALUM 470UF 20% 6.3V RADIAL | 70% | View |
