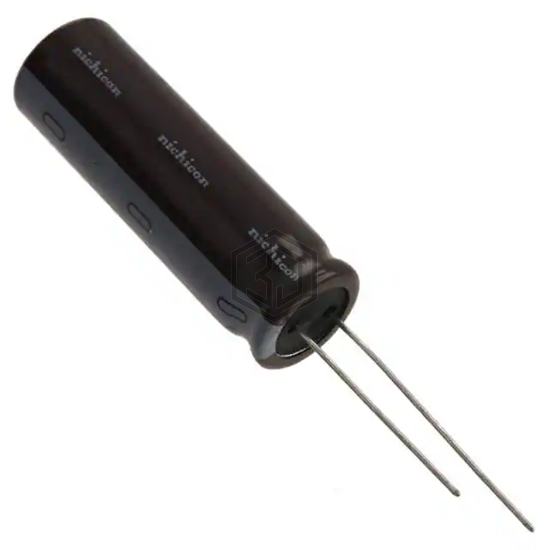

CAP ALUM 82UF 20% 400V RADIAL
UPZ2G820MNY9 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 5,989
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 660 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKWB421ELL820ML25S | Chemi-Con | CAP ALUM 82UF 20% 420V TH | 95% | View |
| 450BXW82MEFR16X40 | Rubycon | CAP ALUM 82UF 20% 450V RADIAL | 91% | View |
| B43508A5826M60 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 91% | View |
| B43508A5826M82 | EPCOS - TDK Electronics | CAP ALUM 82UF 20% 450V SNAP | 91% | View |
| LGR2W820MELZ45 | Nichicon | CAP ALUM 82UF 20% 450V SNAP | 90% | View |
| 100ZLJ82MCE10X16 | Rubycon | CAP ALUM 82UF 20% 100V RADIAL | 64% | View |
Submit your RFQ for UPZ2G820MNY9 and get a quote within 24 hours.
