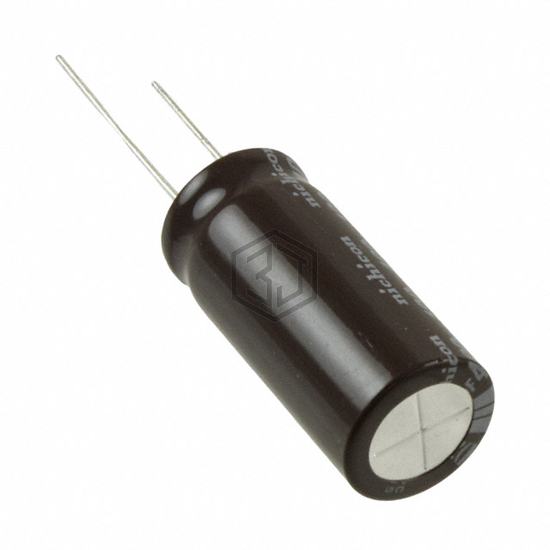

CAP ALUM 120UF 20% 400V RADIAL
UPZ2G121MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 120UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,561
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 670 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.005 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A9127M60 | EPCOS - TDK Electronics | CAP ALUM 120UF 20% 400V SNAP | 99% | View |
| 450MXC120MEFCSN22X40 | Rubycon | CAP ALUM 120UF 20% 450V SNAP | 93% | View |
| SLP121M350C1P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 120UF 20% 350V SNAP | 91% | View |
| EKMS421VSN121MP30S | United Chemi-Con | CAP ALUM 120UF 20% 420V SNAP | 91% | View |
| 450HXW120MEFR14.5X45 | Rubycon | CAP ALUM 120UF 20% 450V RADIAL | 84% | View |
| UCY2E121MHD6TN | Nichicon | CAP ALUM 120UF 20% 250V RADIAL | 69% | View |
Submit your RFQ for UPZ2G121MHD and get a quote within 24 hours.
