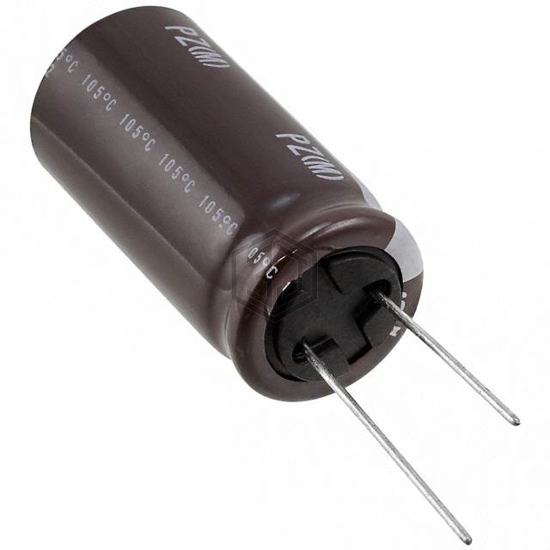

CAP ALUM 390UF 20% 200V RADIAL
UPZ2D391MHD6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 390UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 8,386
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.568 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43508A2397M62 | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 98% | View |
| MAL215942391E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 390UF 20% 200V SNAP | 97% | View |
| B43252A2397M | EPCOS - TDK Electronics | CAP ALUM 390UF 20% 200V SNAP | 93% | View |
| LAR2G391MELA50 | Nichicon | CAP ALUM 390UF 20% 400V SNAP | 68% | View |
| 100ZLJ390MGC18X20 | Rubycon | CAP ALUM 390UF 20% 100V RADIAL | 67% | View |
| 860080678018 | Würth Elektronik | CAP ALUM 390UF 20% 50V RADIAL | 65% | View |
Submit your RFQ for UPZ2D391MHD6 and get a quote within 24 hours.
