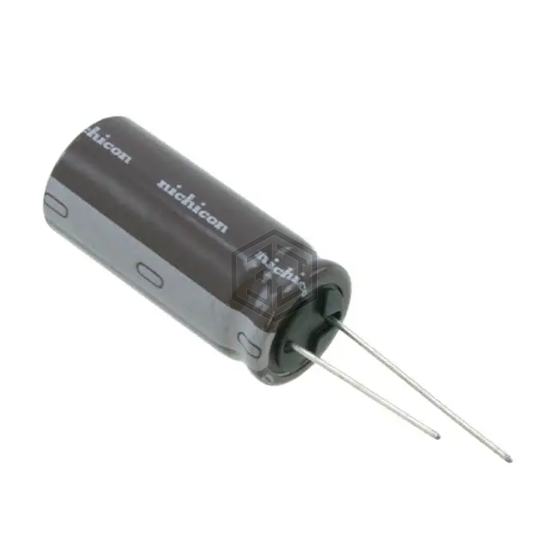

CAP ALUM 330UF 20% 200V RADIAL
UPZ2D331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 7,400
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.01 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.414 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 250VXR330MEFCSN25X30 | Rubycon | CAP ALUM 330UF 20% 250V SNAP | 83% | View |
| 250VXG330MEFC25X25 | Rubycon | CAP ALUM 330UF 20% 250V SNAP | 76% | View |
| EEU-FC1J331 | Panasonic Electronic Components | CAP ALUM 330UF 20% 63V RADIAL | 72% | View |
| ESW337M050AH4EA | KEMET | CAP ALUM 330UF 20% 50V RADIAL | 70% | View |
| 337KBM100MSQ | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 100V RADIAL | 66% | View |
| 400MXC330MEFCSN30X40 | Rubycon | CAP ALUM 330UF 20% 400V SNAP | 62% | View |
Submit your RFQ for UPZ2D331MHD and get a quote within 24 hours.
