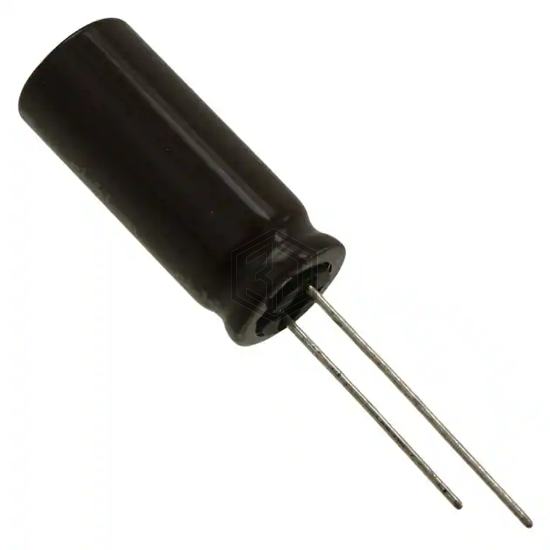

CAP ALUM 150UF 20% 200V RADIAL
UPZ2D151MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 9,540
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 620 mA @ 120 Hz |
| Ripple Current @ High Frequency | 868 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXE161ELL151MLN3S | United Chemi-Con | CAP ALUM 150UF 20% 160V RADIAL | 78% | View |
| EKMH351VNN151MQ30S | United Chemi-Con | CAP ALUM 150UF 20% 350V SNAP | 69% | View |
| EKMM421VSN151MR25S | United Chemi-Con | CAP ALUM 150UF 20% 420V SNAP | 62% | View |
| 381LX151M550A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 550V SNAP | 61% | View |
| EKMS451VSN151MQ30S | United Chemi-Con | CAP ALUM 150UF 20% 450V SNAP | 59% | View |
| 400VXH150MEFC22X30 | Rubycon | CAP ALUM 150UF 20% 400V SNAP | 53% | View |
Submit your RFQ for UPZ2D151MHD and get a quote within 24 hours.
