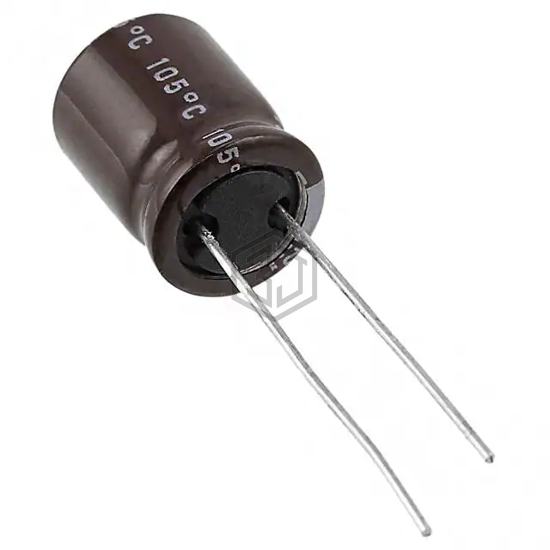

CAP ALUM 4.7UF 20% 35V RADIAL
UPX1V4R7MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 585
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 107.25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 143 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPX1V4R7MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| KMG35VB4R7M5X11LL | United Chemi-Con | CAP ALUM 4.7UF 20% 35V RADIAL | 100% | View |
| RXW4R7M1VBK-0511S | Surge | CAP ALUM 35V POLAR | 86% | View |
| UPW1V4R7MDD1TA | Nichicon | CAP ALUM 4.7UF 20% 35V RADIAL | 78% | View |
| UPW1V4R7MDD1TD | Nichicon | CAP ALUM 4.7UF 20% 35V RADIAL | 78% | View |
| EKMA350ETC4R7MD07D | United Chemi-Con | CAP ALUM 4.7UF 20% 35V RADIAL | 64% | View |
| EKMA350ELL4R7MD07D | United Chemi-Con | CAP ALUM 4.7UF 20% 35V RADIAL | 64% | View |
