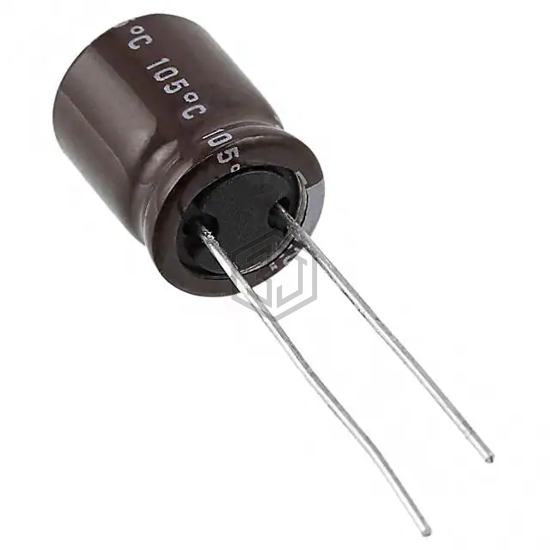

CAP ALUM 33UF 20% 35V RADIAL
UPX1V330MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 524
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 283.5 mA @ 120 Hz |
| Ripple Current @ High Frequency | 378 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPX1V330MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41866C6336M000 | EPCOS - TDK Electronics | CAP ALUM 50V POLAR | 72% | View |
| EEU-FC2A330L | Panasonic Electronic Components | CAP ALUM 33UF 20% 100V RADIAL | 70% | View |
| EEU-FC1H330H | Panasonic Electronic Components | CAP ALUM 33UF 20% 50V RADIAL | 68% | View |
| ELXV101ETD330MJ16S | United Chemi-Con | CAP ALUM 33UF 20% 100V RADIAL | 61% | View |
| UPM1H330MED | Nichicon | CAP ALUM 33UF 20% 50V RADIAL | 61% | View |
| EY1V330MP20511EP5U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 61% | View |
