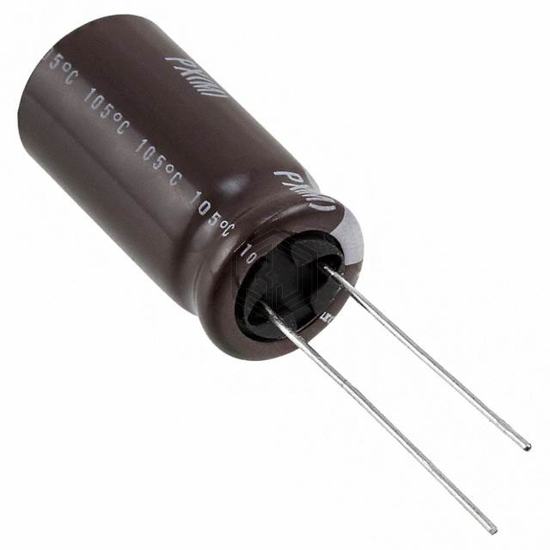

CAP ALUM 220UF 20% 35V RADIAL
UPX1V221MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,763
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 756 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.008 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPX1V221MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41888C7227M | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 35V RADIAL | 96% | View |
| B41042A6227M | EPCOS - TDK Electronics | CAP ALUM 220UF 20% 50V RADIAL | 88% | View |
| MAL211917221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 40V AXIAL | 81% | View |
| MAL214058221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 65% | View |
| 50PX220MEFC10X12.5 | Rubycon | CAP ALUM 220UF 20% 50V RADIAL | 61% | View |
| MAL216035221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UPX1V221MHD and get a quote within 24 hours.
