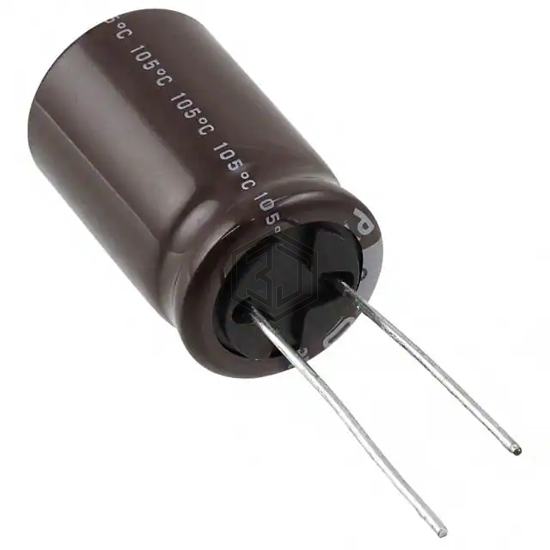

CAP ALUM 470UF 20% 25V RADIAL
UPX1E471MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,140
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.008 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.344 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPX1E471MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 757D477M025CG3D | Vishay Sprague | CAP ALUM 470UF 20% 25V RADIAL | 96% | View |
| 672D477H020EK5C | Vishay Sprague | CAP ALUM 470UF 20V RADIAL | 86% | View |
| 860080575017 | Würth Elektronik | CAP ALUM 470UF 20% 35V RADIAL | 76% | View |
| MAL213660471E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 35V RADIAL | 72% | View |
| 517D477M050DG6AE3 | Vishay Sprague | CAP ALUM 470UF 20% 50V RADIAL | 66% | View |
| B41858C4477M8 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 16V RADIAL | 62% | View |
