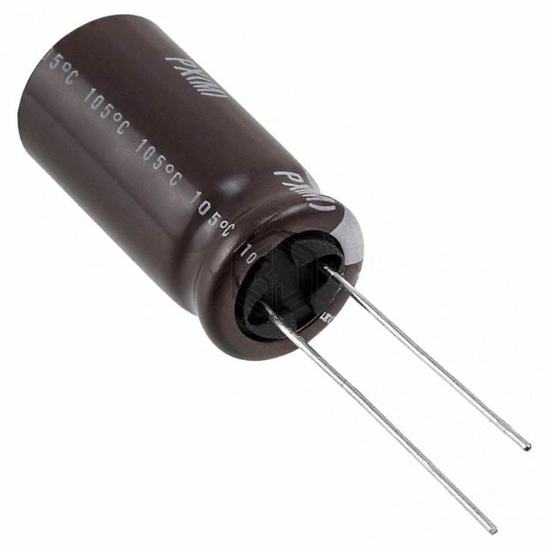

CAP ALUM 330UF 20% 25V RADIAL
UPX1E331MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 6,224
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 756 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.008 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPX1E331MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 337KXM025MLN | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 25V RADIAL | 90% | View |
| RXW331M1VBK-0820S | SURGE | CAP ALUM 330UF 20% 35V RADIAL | 86% | View |
| EEU-FC1E331L | Panasonic Electronic Components | CAP ALUM 330UF 20% 25V RADIAL | 81% | View |
| MAL216060331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 78% | View |
| SEK331M016ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 330UF 20% 16V RADIAL | 71% | View |
| 337RZM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 16V RADIAL | 71% | View |
Submit your RFQ for UPX1E331MHD and get a quote within 24 hours.
