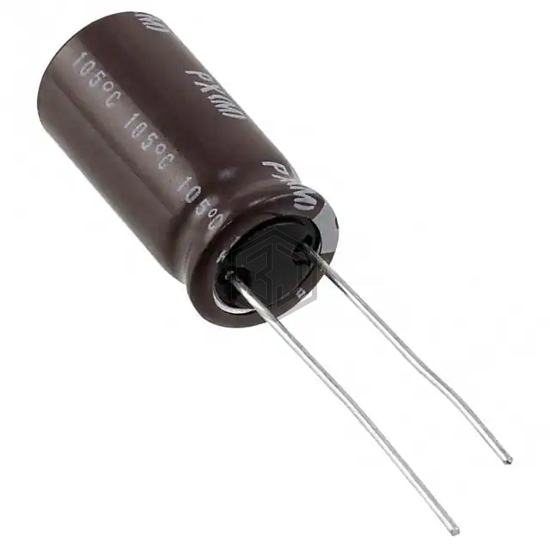

CAP ALUM 330UF 20% 16V RADIAL
UPX1C331MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,552
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 504 mA @ 120 Hz |
| Ripple Current @ High Frequency | 672 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPX1C331MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213665331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 16V RADIAL | 92% | View |
| 678D337M025DG3O | Vishay Sprague | CAP ALUM 330UF 20% 25V RADIAL | 80% | View |
| ELXV250EC3331MH20D | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 77% | View |
| ECA-1JHG331B | Panasonic Electronic Components | CAP ALUM 330UF 20% 63V RADIAL | 76% | View |
| ECA-1CHG331BJ | Panasonic Electronic Components | CAP ALUM 330UF 20% 16V RADIAL | 71% | View |
| UBX1K331MHL | Nichicon | CAP ALUM 330UF 20% 80V RADIAL | 51% | View |
