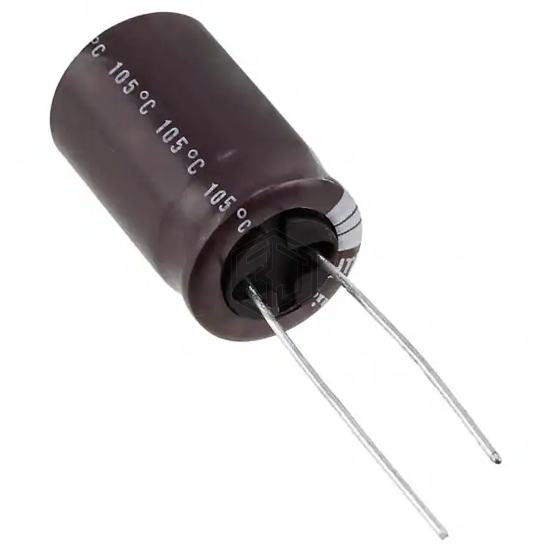

CAP ALUM 4.7UF 20% 450V RADIAL
UPW2W4R7MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 4,753
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 49 mA @ 120 Hz |
| Ripple Current @ High Frequency | 78.4 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2W4R7MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 450BXC4.7MEFC8X20 | Rubycon | CAP ALUM 4.7UF 20% 450V RADIAL | 100% | View |
| ECA-2VHG4R7B | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 350V RADIAL | 91% | View |
| B43896A5475M002 | EPCOS - TDK Electronics | CAP ALUM 450V POLAR | 91% | View |
| ESH475M350AG3AA | KEMET | CAP ALUM RAD 105C | 88% | View |
| 250PX4R7MEFC8X11.5 | Rubycon | CAP ALUM 4.7UF 20% 250V RADIAL | 77% | View |
| 50YXF4.7MEFCT15X11 | Rubycon | CAP ALUM 4.7UF 20% 50V RADIAL | 69% | View |
Submit your RFQ for UPW2W4R7MHD1TO and get a quote within 24 hours.
