CAP ALUM 2.2UF 20% 400V RADIAL

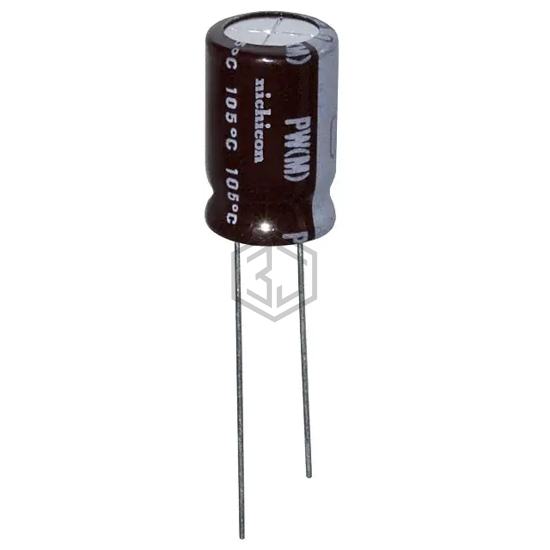

UPW2G2R2MPH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 8,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27 mA @ 120 Hz |
| Ripple Current @ High Frequency | 43.2 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2G2R2MPH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214252286E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 400V RADIAL | 90% | View |
| UVZ2C2R2MED1TD | Nichicon | CAP ALUM 2.2UF 20% 160V RADIAL | 75% | View |
| UPW2D2R2MED | Nichicon | CAP ALUM 2.2UF 20% 200V RADIAL | 75% | View |
| EEU-TA1H2R2 | Panasonic Electronic Components | CAP ALUM 2.2UF 20% 50V RADIAL | 71% | View |
| MALREKB05AA122L00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 100V RADIAL | 70% | View |
| 50YXM2.2MEFRT15X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 59% | View |
Submit your RFQ for UPW2G2R2MPH and get a quote within 24 hours.
