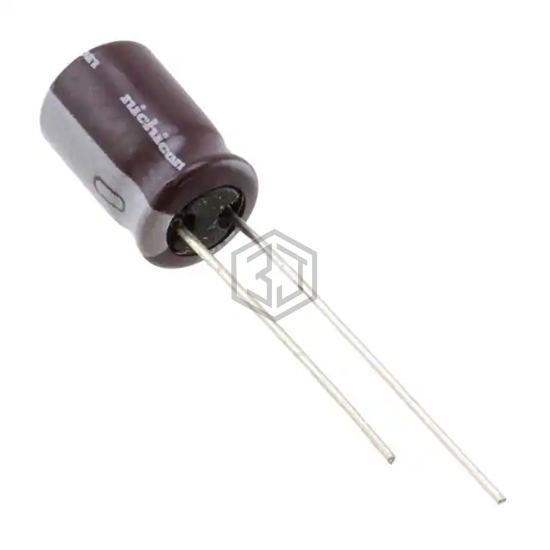

CAP ALUM 0.47UF 20% 315V RADIAL
UPW2FR47MPD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 0.47UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 6,159
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 0.47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11 mA @ 120 Hz |
| Ripple Current @ High Frequency | 17.6 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2FR47MPD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG351ELLR47MF11D | United Chemi-Con | CAP ALUM 0.47UF 20% 350V RADIAL | 86% | View |
| UVY2GR47MED1TA | Nichicon | CAP ALUM 0.47UF 20% 400V RADIAL | 80% | View |
| UPW2CR47MED1TA | Nichicon | CAP ALUM 0.47UF 20% 160V RADIAL | 75% | View |
| 517D474M100JA6AE3 | Vishay Sprague | CAP ALUM 0.47UF 20% 100V RADIAL | 74% | View |
| ECA-2AHGR47I | Panasonic Electronic Components | CAP ALUM 0.47UF 20% 100V RADIAL | 74% | View |
| MALREKE00AA047H00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 0.47UF 20% 50V RADIAL | 71% | View |
