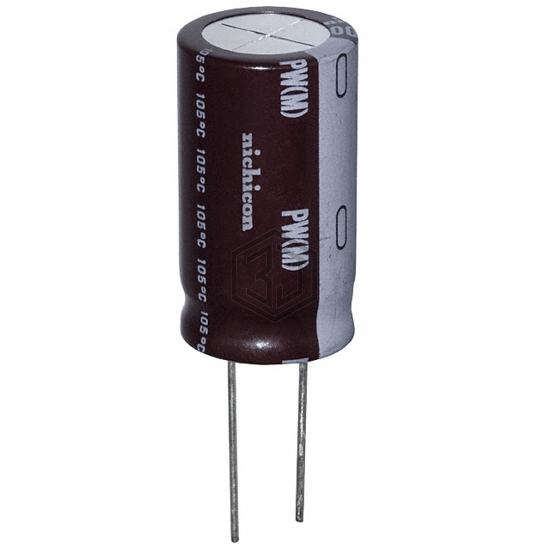

CAP ALUM 100UF 20% 315V RADIAL
UPW2F101MRH6 is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 6,455
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 285 mA @ 120 Hz |
| Ripple Current @ High Frequency | 456 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.378" (35.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2F101MRH6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPW2E101MHH | Nichicon | CAP ALUM 100UF 20% 250V RADIAL | 85% | View |
| KMG400VB101M16X40LL | United Chemi-Con | CAP ALUM 100UF 20% 400V RADIAL | 84% | View |
| 107CKE100MLQ | Cornell Dubilier / Illinois Capacitor | CAP ALUM 100UF 20% 100V RADIAL | 71% | View |
| 50YXM100MEFRT78X11.5 | Rubycon | CAP ALUM 100UF 20% 50V RADIAL | 57% | View |
| 100YXG100MEFCG412.5X20 | Rubycon | CAP ALUM 100UF 20% 100V RADIAL | 56% | View |
| 678D107M063DG3D | Vishay Sprague | CAP ALUM 100UF 20% 63V RADIAL | 54% | View |
