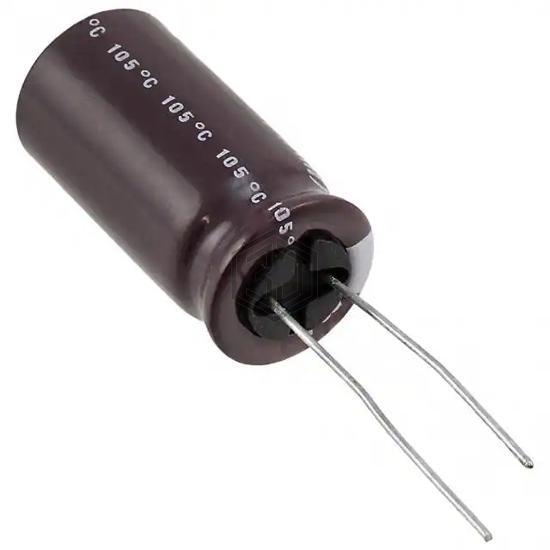

CAP ALUM 22UF 20% 250V RADIAL
UPW2E220MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 6,861
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 155 mA @ 120 Hz |
| Ripple Current @ High Frequency | 248 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2E220MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPJ2V220MHD | Nichicon | CAP ALUM 22UF 20% 350V RADIAL | 88% | View |
| UVZ2D220MPD | Nichicon | CAP ALUM 22UF 20% 200V RADIAL | 81% | View |
| MAL215296225E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 400V RADIAL | 80% | View |
| UCS2E220MPD | Nichicon | CAP ALUM 22UF 20% 250V RADIAL | 72% | View |
| B41858C9226M000 | EPCOS - TDK Electronics | CAP ALUM 22UF 20% 100V RADIAL | 65% | View |
| 50ZL22MEFCT56.3X7 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 65% | View |
Submit your RFQ for UPW2E220MHD1TO and get a quote within 24 hours.
