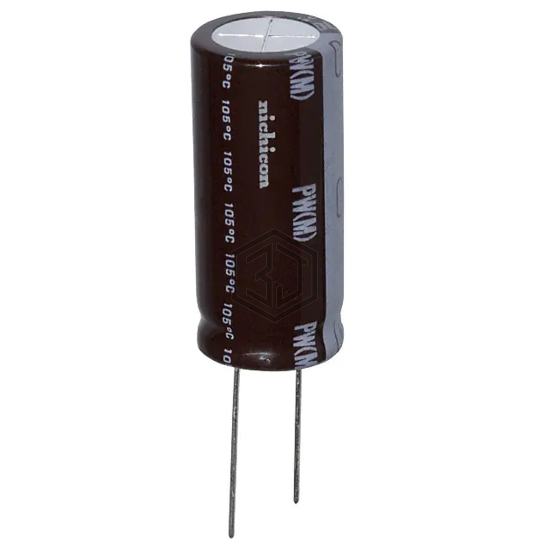

CAP ALUM 220UF 20% 200V RADIAL
UPW2D221MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 9,652
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 515 mA @ 120 Hz |
| Ripple Current @ High Frequency | 824 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.575" (40.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2D221MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXY630ELL221MK20S | United Chemi-Con | CAP ALUM 220UF 20% 63V RADIAL | 74% | View |
| 100YXH220MEFCGC16X20 | Rubycon | CAP ALUM 220UF 20% 100V RADIAL | 69% | View |
| EEU-TP1V221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 68% | View |
| UBT1K221MHD8TO | Nichicon | CAP ALUM 220UF 20% 80V RADIAL | 65% | View |
| ESY227M050AH2AA | KEMET | CAP ALUM 220UF 20% 50V RADIAL | 56% | View |
| 511D227M035CG4D | Vishay Sprague | CAP ALUM 220UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for UPW2D221MHH and get a quote within 24 hours.
