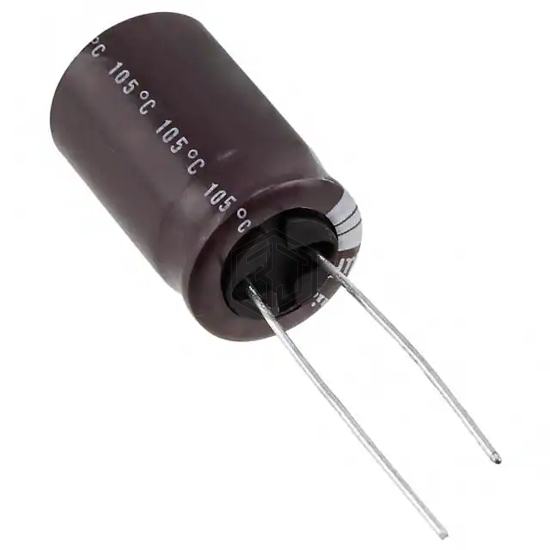

CAP ALUM 33UF 20% 160V RADIAL
UPW2C330MHD1TO is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 6,418
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 288 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2C330MHD1TO is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKXF161ELL330MJ16S | United Chemi-Con | CAP ALUM 33UF 20% 160V RADIAL TH | 89% | View |
| 200TXW33MEFR6.3X40 | Rubycon | CAP ALUM 33UF 20% 200V RADIAL TH | 86% | View |
| URZ2E330MHD6 | Nichicon | CAP ALUM 33UF 20% 250V RADIAL | 71% | View |
| UVY2G330MHD | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 68% | View |
| UHC1A330MDD | Nichicon | CAP ALUM 33UF 20% 10V RADIAL | 68% | View |
| 450CXW33MEFR10X40 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL | 50% | View |
Submit your RFQ for UPW2C330MHD1TO and get a quote within 24 hours.
