CAP ALUM 22UF 20% 160V RADIAL

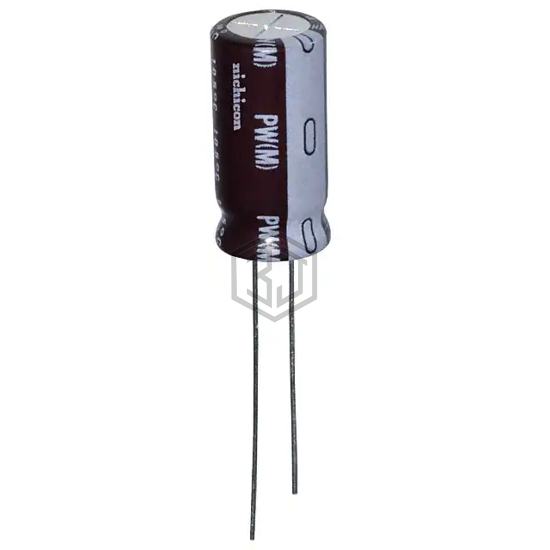

UPW2C220MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 160V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 160 V, package / case Radial, Can.
In Stock: 1,109
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 130 mA @ 120 Hz |
| Ripple Current @ High Frequency | 208 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2C220MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 160YXA22MEFCT810X16 | Rubycon | CAP ALUM 22UF 20% 160V RADIAL | 97% | View |
| 100RX3022M8X11.5 | Rubycon | CAP ALUM 22UF 20% 100V RADIAL | 83% | View |
| 100YXM22MEFRTA8X11.5 | Rubycon | CAP ALUM 22UF 20% 100V RADIAL | 83% | View |
| EEU-FR1H220 | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 73% | View |
| MAL211690039E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 50V RADIAL | 69% | View |
| EL1H220MC60511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 63% | View |
