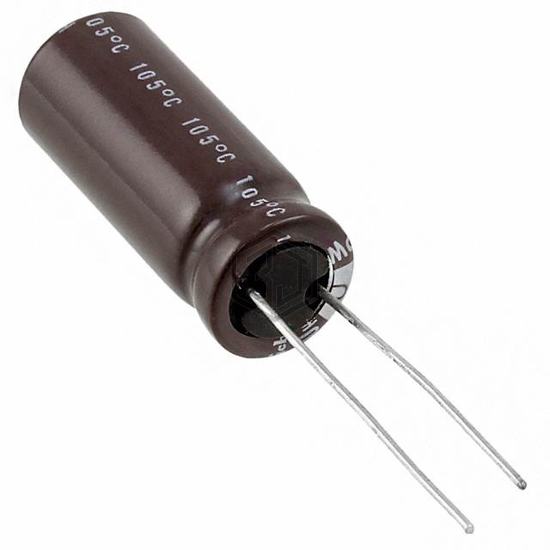

CAP ALUM 82UF 20% 100V RADIAL
UPW2A820MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 82UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 8,713
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 351 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 250 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A820MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 826KXM063MJU | Cornell Dubilier / Illinois Capacitor | CAP ALUM 82UF 20% 63V RADIAL | 69% | View |
| 860160673019 | Würth Elektronik | CAP ALUM 82UF 20% 50V RADIAL | 61% | View |
| 601D826F250GP2 | Vishay Sprague | CAP ALUM 82UF 250V AXIAL | 56% | View |
| 672D826H050DM5C | Vishay Sprague | CAP ALUM 82UF 50V RADIAL | 56% | View |
| ELXY350ETD820MF15D | United Chemi-Con | CAP ALUM 82UF 20% 35V RADIAL | 55% | View |
| EEU-FC1E820B | Panasonic Electronic Components | CAP ALUM 82UF 20% 25V RADIAL | 54% | View |
