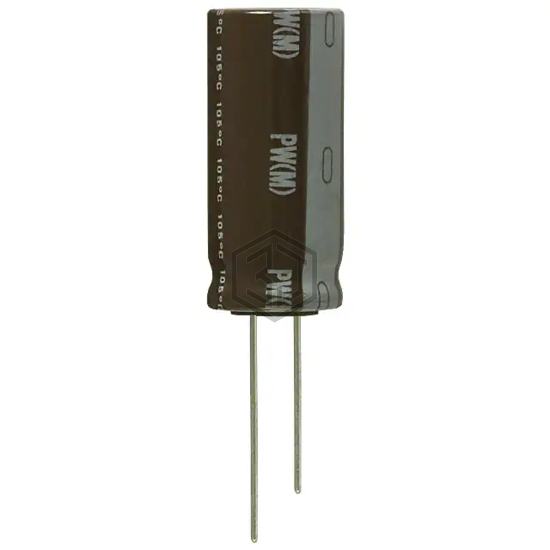

CAP ALUM 680UF 20% 100V RADIAL
UPW2A681MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 680UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 7,022
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.058 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.41 A @ 100 kHz |
| Impedance | 64 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.398" (35.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A681MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214636681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V RADIAL | 72% | View |
| ELXZ350EMC681MJ30S | United Chemi-Con | CAP ALUM 680UF 20% 35V RADIAL | 70% | View |
| MAL214658681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V RADIAL | 67% | View |
| UPA1C681MPD6TD | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 63% | View |
| ELXZ500ELL681MK30S | United Chemi-Con | CAP ALUM 680UF 20% 50V RADIAL | 62% | View |
| 757D687M035DK3D | Vishay Sprague | CAP ALUM 680UF 20% 35V RADIAL | 62% | View |
Submit your RFQ for UPW2A681MHH and get a quote within 24 hours.
