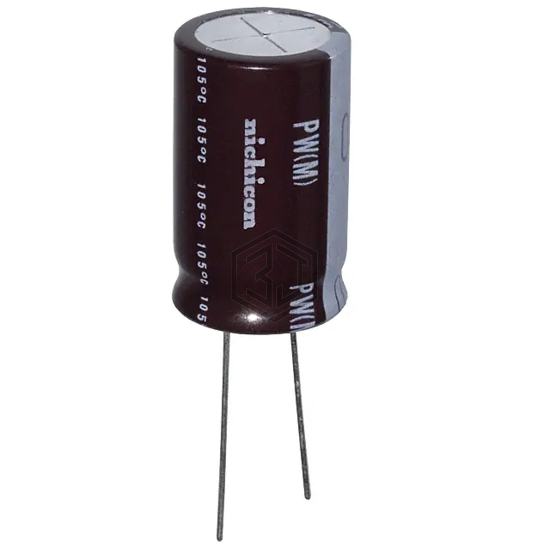

CAP ALUM 560UF 20% 100V RADIAL
UPW2A561MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 560UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 6,623
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.028 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.37 A @ 100 kHz |
| Impedance | 68 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UPW2A561MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1V561E | Panasonic Electronic Components | CAP ALUM 560UF 20% 35V RADIAL | 75% | View |
| ELXY350ELL561MJ30S | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 68% | View |
| 860160678031 | Würth Elektronik | CAP ALUM 560UF 20% 50V RADIAL | 64% | View |
| 672D567H020ET5C | Vishay Sprague | CAP ALUM 560UF 20V RADIAL | 56% | View |
| HVMLS561M250EB1C | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 250V FLATPACK | 56% | View |
| 630D567M025EF5A | Vishay Sprague | CAP ALUM 560UF 20% 25V AXIAL | 56% | View |
Submit your RFQ for UPW2A561MHH and get a quote within 24 hours.
